Briquette press machine
Home > Products > Briquette press machine

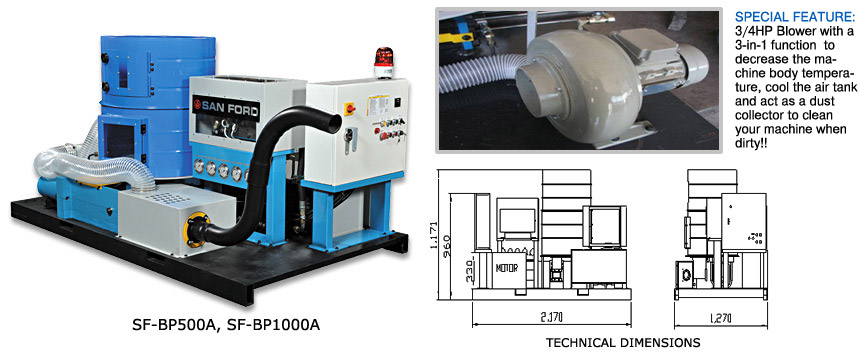

SF-BP500A, SF-BP1000A

“A” SERIES Briquette press machine
  • Economic and environmentally friendly solution to transforming and down-sizing your wood waste.
  • Works on a fully automated system, with a set hydraulics system suited which is efficient and user friendly.
  • The SF-BP500A/1000A models best suit finer dust materials such as sanding machine residue.
  • Processes and compresses finer dust materials into briquettes which can act as a superb source for heating fuel.
    Furthermore, saving space and cuts down on your transportation costs.
  • Complies with CE regulations and can be accustomed to meet your individual needs.
    		•
    Patent Protected:US-PAT NO. 7093538B2, 7216442
    CH-PAT NO. 200620129789.1, ZL200820003502.X
    TW-PAT NO. M290456, M286766, M280285, M306172, M336144
    EU-PATENT PENDING


    Model Motor
    HP    		 Production
    kg/h    		 Briquette Diameter
    mm    		 Bin Capacity
    M³    		 Packing size
    cm    		 N.W.
    kg    		 G.W.
    kg
    SF-BP500A 7.5 15-70 Φ65 0.28 221 x 130 x 100 830 875
    SF-BP1000A 10 15-80 Φ76 0.28 221 x 130 x 100 845 885

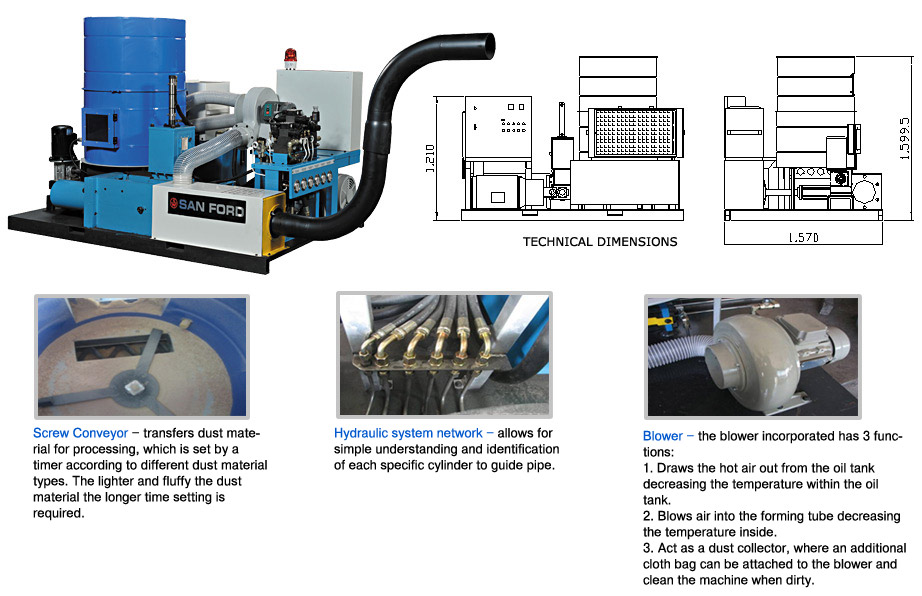

    SF-BP1000B, SF-BP2500B

    “B” SERIES Briquette press machine
  • Economic and environmentally friendly solution to transforming and down-sizing your wood waste.
  • Works on a fully automated system, with a set hydraulics system suited which is efficient and user friendly.
  • The SF-BP1000B/2500B models suit normal dust materials to fluffy dust shavings such as molder shaving machine residue.
  • Processes and compresses finer dust materials into briquettes which can act as a superb source for heating fuel.
    Furthermore, saving space and cuts down on your transportation costs.
  • Complies with CE regulations and can be accustomed to meet your individual needs.
    		•
    Patent ProtectedUS-PAT NO. 7093538B2, 7216442
    CH-PAT NO. 200620129789.1, ZL200820003502.X
    TW-PAT NO. M290456, M286766, M280285, M306172, M336144
    EU-PATENT PENDING

    Model Motor
    HP    		 Production
    kg/h    		 Briquette Diameter
    mm    		 Bin Capacity
    M³    		 Packing size
    cm    		 N.W.
    kg    		 G.W.
    kg
    SF-BP1000B 10 15-90 Φ76 0.29 221 x 130 x 124 870 910
    SF-BP2500B 25 15-180 Φ100 0.50 221 x 161 x 124 1600 1850

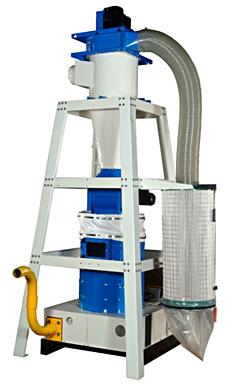

    Combination with Cyclone collector

  • Able to connect to existing dust collector system,
  • Infrared indicator: the infrared will have the cyclone turn on automatically whenthe briquette drum is empty.
    When the infrared senses the drum is full, the cyclone wil stop suction from the silo.
    		•
