2-Stage Cyclones
Home > Products > 2-Stage Cyclones

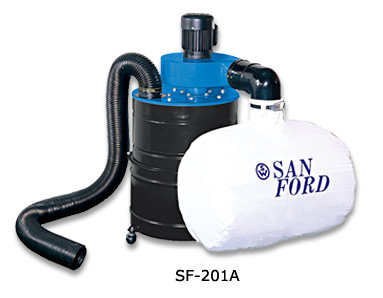

SF-201A, SF-201

  • Two stage dust collection system seperates large chips and fine dust before they reach the blower, ensuring a quiet machine and durability.
  • Low in cost and economical in use and quiet in operation. Suitable for medium amounts of fine dust of wood, metal, paper, chemicals and plastics.
  • Patent ProtectedUS-PATENT PENDING
    CH-PAT NO. 98247867.4
    TW-PAT NO. M323336
    AU PAT NO. 720843
    AM-PAT NO. 6117201


    Model Motor
    HP
    Air Speed
    m/sec
    Air Delivery
    m³/min
    CFM CMH
    m³/hr
    Air suction
    mm
    Air inlet adapter
    mm
    Filter Bag
    cm
    Collection drum
    *not included
    Packing size
    cm
    N.W.
    kg
    G.W.
    kg
    SF-201A 3/4 22 11 390 663 100 (4") 100 x 1hole Φ46 - 67*55*43 28 31
    SF-201 1.5 24 26 936 1590 150 (6") 150 x 1hole Φ15*82*63 - 75*65*50 40 41

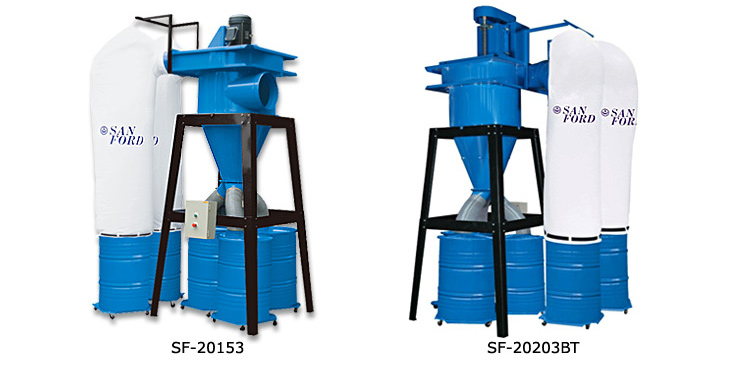

    SF-2031, SF-2033, SF-2051, SF-2053, SF-2073, SF-20103, SF-20153, SF-20203BT

  • Compact, two stage cyclone seperator efficiently divides large particles from fine dust.
  • Utilizes 55 gallon, fiber and steel drums(not included) in the collector system - not susceptible to puncture damage as plastic bags.
    Can be equipped with casters for mobility and for easier transpoirt and cleaning.
  • Rigid steel support stand for firm, stable support of dust collector and filter bag.
  • Patent ProtectedUS-PAT NO. 11/490,056, 11/150,131, 11/088,795
    TW-PAT NO. M296739, M271659, M273388


    Model Motor
    HP
    Air Speed
    m/sec
    Air Delivery
    m³/min
    CFM CMH
    m³/hr
    Air suction
    mm
    Air inlet adapter
    mm
    Filter Bag
    cm
    Collection drum
    *not included
    Packing size
    cm
    N.W.
    kg
    G.W.
    kg
    SF-2031 3 22 44 1558 2647 200 (8") 200 x 1hole Φ61*196*1pc 55 Gallon drum x 2 118*76*77
    66*64*4
    118
    5.5
    186
    6
    SF-2033 3 22 44 1558 2647 200 (8") 200 x 1hole Φ61*196*1pc 55 Gallon drum x 2 118*76*77
    66*64*4
    118
    5.5
    186
    6
    SF-2051 5 24 61 2160 3670 225 (9") 225 x 1hole Φ61*196*1pc 55 Gallon drum x 2 118*76*77
    66*64*4
    199
    5.5
    216
    6
    SF-2053 5 24 61 2160 3670 225 (9") 225 x 1hole Φ61*196*1pc 55 Gallon drum x 2 118*76*77
    66*64*4
    199
    5.5
    216
    6
    SF-2073 7.5 26 80 2856 4852 250 (10") 250 x 1hole Φ61*175*2pcs 55 Gallon drum x 4 150*110*75
    66*64*10
    210
    20
    225
    21
    SF-20103 10 28 87 3100 5267 250 (10") 250 x 1hole Φ61*175*2pcs 55 Gallon drum x 4 150*110*75
    66*64*10
    210
    20
    225
    21
    SF-20153 15 32 140 4974 8451 300 (12") 300 x 1hole Φ61*230*2pcs 55 Gallon drum x 5 130*121*182 320 350
    SF-20203BT 20 27 211 7500 12743 400 (16") 400 x 1hole Φ61*400*2pcs 55 Gallon drum x 5 130*121*182 320 350

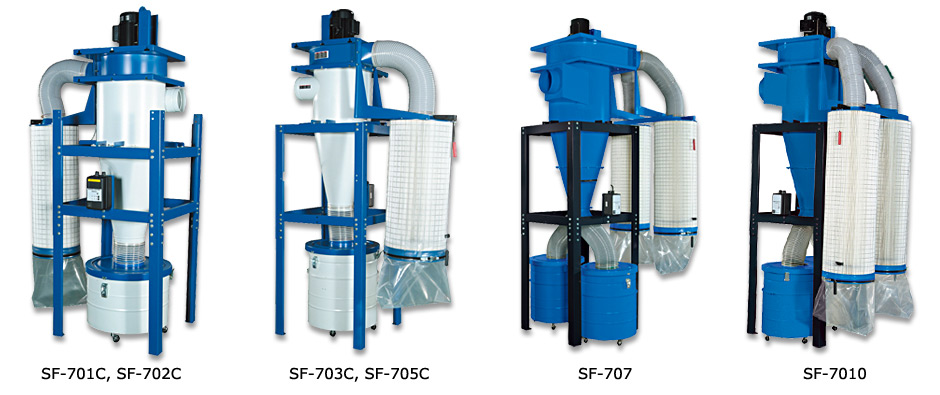

    SF-701C, SF-702C, SF-703C, SF-705C, SF-707C, SF-7010C

  • Heavy gauge steel for cyclone body, blowers and impellers.
  • Including steel, power coated and collapsible collection drums.
  • Wall mounting design for customer to mount cyclone to a wall or existing structure.
  • Magnetic switch with remote control device and overload protection.
  • Highly efficient cartridge filter which could filter 99.9% of 0.2~2 Micron particles.
  • Optional accessory: Strong stands, noise reducers.
  • Patent ProtectedUS-PAT NO. 11/490,056, 11/150,131, 11/088,795
    TW-PAT NO. M296739, M271659, M273388


    Model Motor
    HP
    Air Speed
    m/sec
    Air Delivery
    m³/min
    CFM CMH
    m³/hr
    Air suction
    mm
    Air inlet adapter
    mm
    Filter Bag
    cm
    Collection drum
    *not included
    Packing size
    cm
    N.W.
    kg
    G.W.
    kg
    SF-701C 1.5 26 29 1025 1741 6" 6" x 1hole Cartridge filter
    Φ40*1M*1pc
    35 Gallon Drum 136*71*77
    125*50*46
    90*35*18
    95
    13
    32
    103
    15
    34
    SF-702C 2 26 40 1410 2396 7" 7" x 1hole Cartridge filter
    Φ51*1M*1pc
    35 Gallon Drum 137*71*85
    125*50*46
    90*35*18
    111
    13
    32
    128
    15
    34
    SF-703C 3 25 49 1728 2936 8" 8" x 1hole Cartridge filter
    Φ51*1M*1pc
    55 Gallon Drum 134*71*88
    124*55*55
    102*35*18
    138
    18
    36
    160
    20
    39
    SF-705C 5 22 69 2450 4163 10" 10" x 1hole Cartridge filter
    Φ51*1M*2pc
    55 Gallon Drum 156*77*93
    125*55*55*2pc
    102*35*18
    181
    18*2pc
    36
    203
    20*2pc
    39
    SF-707C 7.5 32 98 3470 5896 10" 10" x 1hole Cartridge filter
    Φ51*1.2M*2pc
    55 Gallon Drum x 2 229*99*108
    143*55*55*2pc
    283
    17
    358
    19
    SF-7010C 10 26 113 4030 6847 12" 12" x 1hole Cartridge filter
    Φ51*1.5M*2pc
    55 Gallon Drum x 2 229*99*108
    173*55*55*2pc
    283
    19
    368
    21

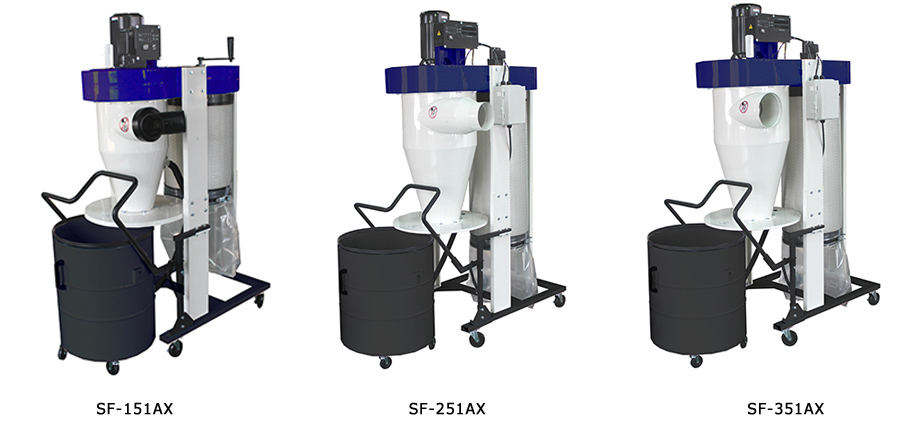

    SF-151AX, SF-251AX , SF-351AX

    Industrial Intelligence!
    PORTABLE SMARTCYCLONE offers:
  • Maximum performance for use in WOOD!
  • 99.97% Filtration efficiency! Filter material imported from Denmark!
  • Automated cartridge filter cleaning (Optional manual hand crank)
  • Unique vacuum equalizer built into collection bin for use with bags.
  • Optional full drum and dirty filter detection!

  • Model Motor
    (HP)
    Air speed
    (m/sec)
    Air flow
    (m³/min)
    CFM Air suction
    (mm/inch)
    Surface area
    (ft2)
    Collection drum
    (Gallon)
    Space occupied
    (cm)
    Packing dimension
    (cm)
    N.W
    (kg)
    G.W
    (kg)
    SF-151AX 1.5 24 23 810 4"(100mm) x 2孔 4.5m 2 (48 ft2) 41 106.6 x 73.7 x 119.4 110 x 70 x 128 115 125
    SF-251AX 2 30 33 1166 6"(152mm) x 1孔 9.5m 2 (109 ft2) 41 108 x 68.6 x 178 118 x 84 x 112
    45.8 x 45.8 113
    153
    19
    173
    20
    SF-351AX 3 24 46 1624 8"(203mm) x 1孔 9.5m 2 (109 ft2) 41 108 x 68.6 x 178 118 x 84 x 112
    45.8 x 45.8 113
    161
    19
    181
    20
