Vacuum Cleaner
Home > Products > Vacuum Cleaner

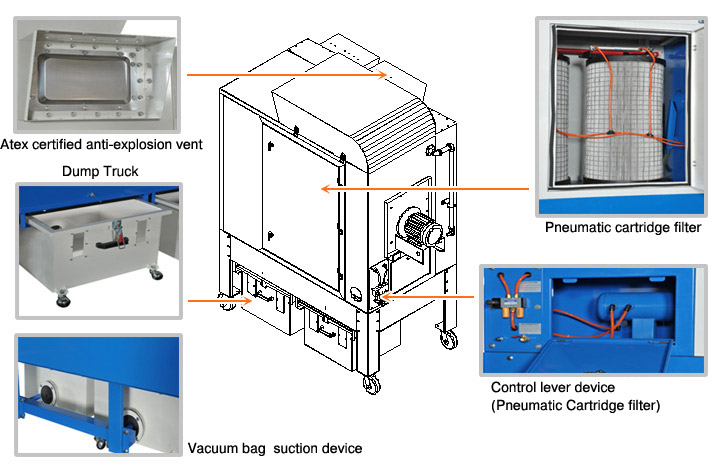

  • Pneumatic cartridge filters system, where the cartridge filters have a 1 micron filtration capacity which is over six times the traditional filter bags
  • Including individual access doors for each filter module, requiring low maintenance.
  • Newly designed dump trucks incorporated, where a rail-like system is used for simple slide-out action for convenient emptying of the trucks.
  • A vacuum bag suction device maintains a negative pressure in the space between the dump truck and the collection bag to grip the collection bag down, preventing it from being sucked up.
  • With the fire emergency sprinkler and anti-explosion vents for absolute safety precautions.
    • 專利認證US PATENT PENDING
    EU-PAT NO. 000472253-0001
    CH PAT-NO. 200520113132.1, ZL200530121166.0, ZL200820131173.7
    GERMANY PAT-NO. 202009004689.3, 202009003618.9
    TW-PAT NO. M282738, M283678, M284434, D112619, M344914, M360280, M355998

    SF-VC300SC, SF-VC500SC, SF-VC750SC, SF-VC1000SC



    Model Motor
    HP    		 Air Speed
    m/sec    		 Air Delivery
    m³/min    		 CFM
    ft³/min    		 Air suction
    		 Air inlet adapter
    		 Filter Bag Lower Bag Space occupied
    cm    		 Packing size
    cm    		 N.W.
    kg    		 G.W.
    kg
    SF-VC300SC 3 35 38 1362 152(6") 152(6")x 1 Φ51  x 1 153 x 119 x 233 148 x 101 x 208 370 400
    SF-VC500SC 5 30 58 2074 203(8") 203(8") x 1 Φ51  x 2 215 x 119 x 233 202 x 101 x 208 525 565
    SF-VC750SC 7.5 30 91 3250 254(10") 254(10") x 1 Φ51  x 3 280 x 119 x 233 267 x 101 x 208 730 780
    SF-VC1000SC 10 29 128 4558 305(12") 305(12") x 1 Φ51  x 4 347 x 119 x 233 335 x 101 x 208 835 915
