New Design Dust Collector
Home > Products > New Design Dust Collector
  • Powerful motor to filter the dust from the air of your working environment efficiently.
  • Protection on the inlet and outlet of the blower to ensure safe usage.
  • Easily assembled in 10 minutes!
  • Quick bag clamp for simple hassle-free replacement of dust bags.
  • Blower can swivel 180 ̊ to your desire.
    		•
    Patent protected US-PAT. NO. D518610S, D502297S, D501964S, 71217307, D533694
    TW-PAT.NO. D104958, M268102, 90302, 90273, 242286, M264006, D112456
    CH-PAT.NO. ZL200430065240.7, ZL200420005972.1, ZL03309601.5, ZL033096023, ZL03265188.0
    EU-PAT.NO. 202004013403.9, 000214325-0001
    FRANCE PAT. NO. 04.11443

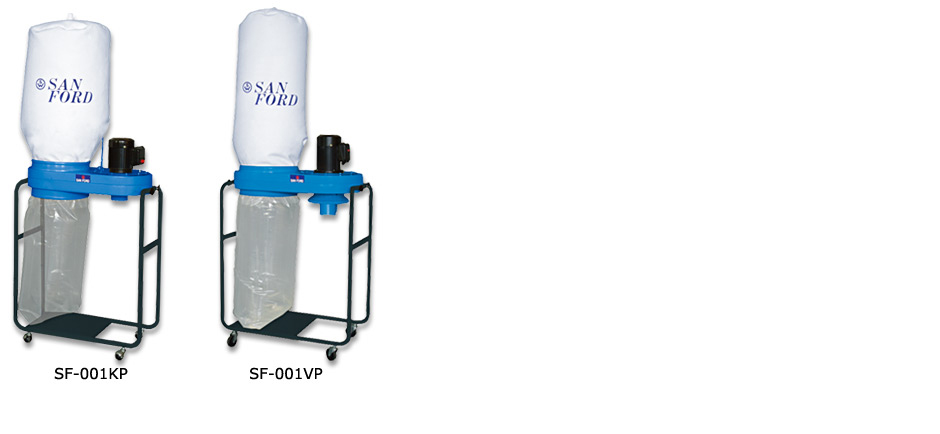

    SF-001KP, SF-001VP, SF-002VDU, SF-003VDU, SF-005VDU, SF-005VPU



    Model Motor
    HP    		 Air Speed
    m/sec    		 Air Delivery
    m³/min    		 CFM
    ft³/min    		 CMH
    m³/hr    		 Air suction
    mm    		 Air inlet adapter
    mm    		 Filter Bag
    cm    		 Lower Bag
    cm    		 Space occupied
    cm    		 Packing size
    cm    		 N.W.
    kg    		 G.W.
    kg
    SF-001KP 1 32 16 550 934 100 (4") 100 x 1hole Φ45 Φ38 75*38*185 79*43*39 36 38
    SF-001VP 1.5 36 27 972 1651 125 (5") 125 x 1hole
    100 x 1hole    		 Φ51 Φ42 90*48*210 93*51*46 42 45
    SF-002VDU 2 29 43 1550 2633 175 (7") 100 x 2holes/
    100 x 3holes    		 Φ45 Φ42 144*48*220 143*53*54 58 60
    SF-003VDU 3 31 61 2170 3687 200 (8") 100 x 4holes Φ55 Φ52 168*58*280 169*62*56.5 80 85
    SF-005VDU 5 29 89 3165 5377 250 (10") 125 x 4holes Φ61 Φ65 190*67*280 194*74*58 111 119
    SF-005VPU 5 29 89 3165 5377 250 (10") 125 x 4holes Φ15 Φ65 190*67*280 194*74*58 111 119
