Downdraft Table
Home > Products > Downdraft Table

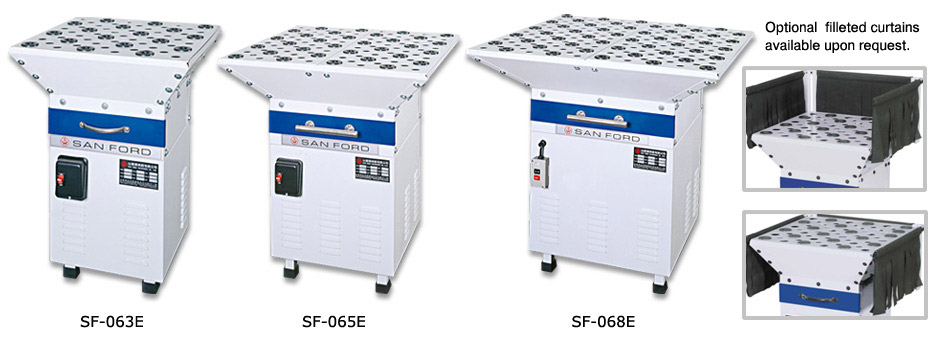

SF-063E, SF-065E, SF-068E

  • Efficient and economical way for facories to provide workers a healthy working environment.
  • The table top design allows for quick and efficient collection of dust before reaching the working environment.
  • These units feature high velocity air flow and low noise. Distinctive filter drawer is durable and easy to clean.
  • Patent ProtectedUS-PAT NO. 6101666
    CH-PAT NO. 99209772.X
    TW-PAT NO. 517599


    Model Motor
    HP
    Air Speed
    m/sec
    Air Delivery
    m³/min
    CFM
    ft³/min
    CMH
    m³/hr
    Air suction
    Filter Bag
    cm
    Space occupied
    cm
    Packing size
    cm
    N.W.
    kg
    G.W.
    kg
    SF-063E 1/2 4.6 13 490 833 60 × 60cm 1.2m² 60*60*83.5 59*48.5*59
    73*71*19
    30
    27
    32
    29
    SF-065E 1 4.6 17 600 1019 80 × 80cm 2.1m² 80*80*92.2 67*58*55
    90.5*61.5*19
    41
    27
    43
    29
    SF-068E 2 5.6 24 850 1444 100 × 100cm 3.2m² 100*100*97 79*69*59
    108.5*68*20
    62
    44
    67
    47

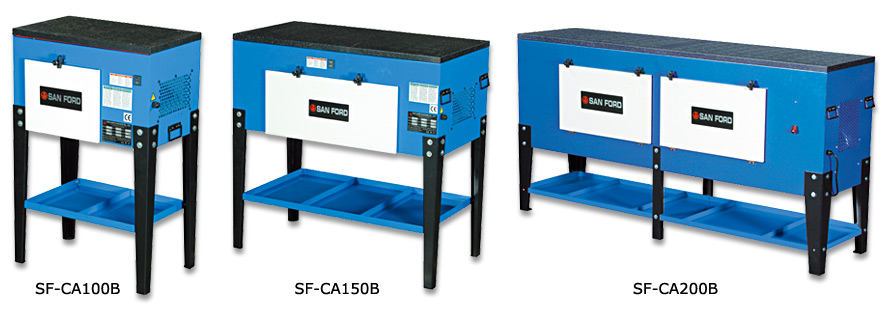

    SF-CA100B, SF-CA150B, SF-CA200B

  • Use of skidproof tables to avoid the wood piece from falling due to the vibration during operation.
  • Built-in blower.
  • Filter bag drawer for ease of replacement.
  • A shelf under the draft table to store tools.
  • Patent ProtectedCH-PAT NO. ZL200520145406.5
    TW-PAT NO. M302405, M199242, M289355


    Model Motor
    HP
    Air Speed
    m/sec
    Air Delivery
    m³/min
    CFM
    ft³/min
    CMH
    m³/hr
    Air suction
    Filter Bag
    cm
    Space occupied
    cm
    Packing size
    cm
    N.W.
    kg
    G.W.
    kg
    SF-CA100B 1/8 - 11 400 680 25"× 15" 305*305*3pc 64*38*97 75*54.5*55 32 36
    SF-CA150B 1/8 *2 - 22 800 1359 40"× 20" 305*610*3pc 102*51*100 115.5*68*58 56 66
    SF-CA200B 1/2 *2 - 36 1300 2209 80"× 20" 610*305*305*2pc 203*51*97 212*59.5*77 138 158
